产品名称:
产品类型:

ST 单相

Fore more information
>联系我们
Technical Data Sheet
>  产品资料下载

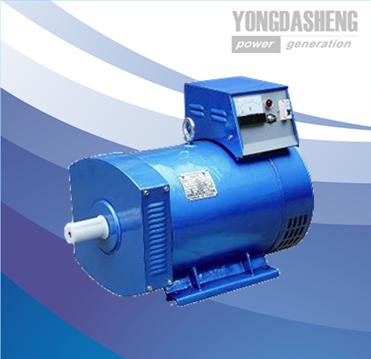

    ST Series generators are mainly designed to serve as power generating unit of small capacity which supply electrivity for lignting purpose in ships as well as for household electric device use in towns or villages.
    The construction of the generators is of drip-proof,salient pole rotating field self-excitation and constant voltage type.
    The alternator inside id used with high quality electric magneric and electrical materials,stator insulation is of Class E(or B).rotor insulation is of Class B.These generators are excellent in appearance.They are consolidate in construction and easy to maintain.Dimensions are adopted IEC standard,they are sutiable for Australia,Europe,America and other countries if the end covers are model B.
    The alternators are of harmonic wave self-excitation constand voltage system and automatic voltage control excitation constant voltage system,both of them have excellent dynamic characteristic performance,convenient and reliable in operation.

Operating Conditions

    Under the following enviroment,the generator could run continously:
    1.Altitute not exceed 1000m
    2.Ambient temperature:-15℃——40℃
    3.Relative air humidity:not exceed 90%

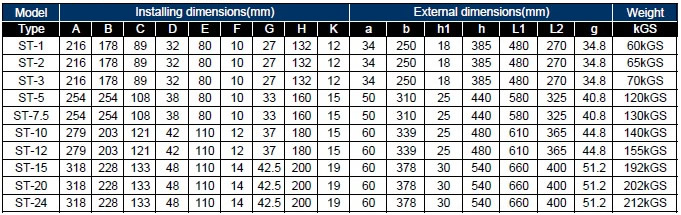

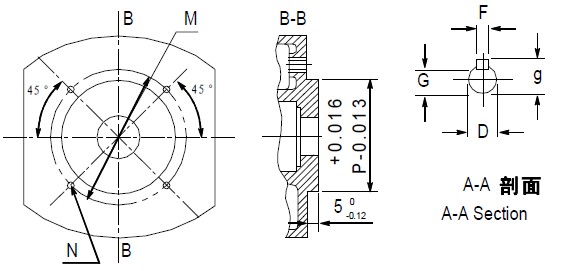

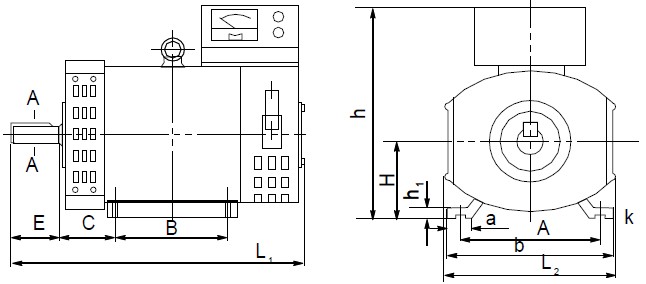

Installation and overall dimension

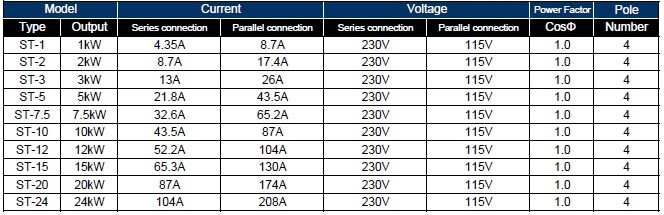

Rating Book  1-phase 50Hz @ 1500RPM    60Hz @ 1800RPM
